20V MAX 5 Spot Green Line Laser
Now offered on the 20V MAX platform, this 5 Spot Green Line Laser will seamlessly integrate with the tools you already have on the job. The laser features a strong magnetic mount, fine adjust knob, rotating head, and locking pendulum. Use for two full work days with a 24 hour runtime when using the included 20V MAX 2.0 Ah battery. The kit includes the 5 Spot Green Line Laser, one 20V MAX 2 Ah battery, charger, ceiling/wall bracket, and laser target in a DEWALT TSTAK case.
Where it's sold
- US Listed on DEWALT United States · from $670.65 at Tool Nut
- UK Not currently sold
- EU Not currently sold
Prices
Checked 29 Oct 2026
- Tool Nut $670.65
- Power Tool Store $789.00
Some retailer links are affiliate links: we may earn a commission on qualifying purchases at no extra cost to you. Details

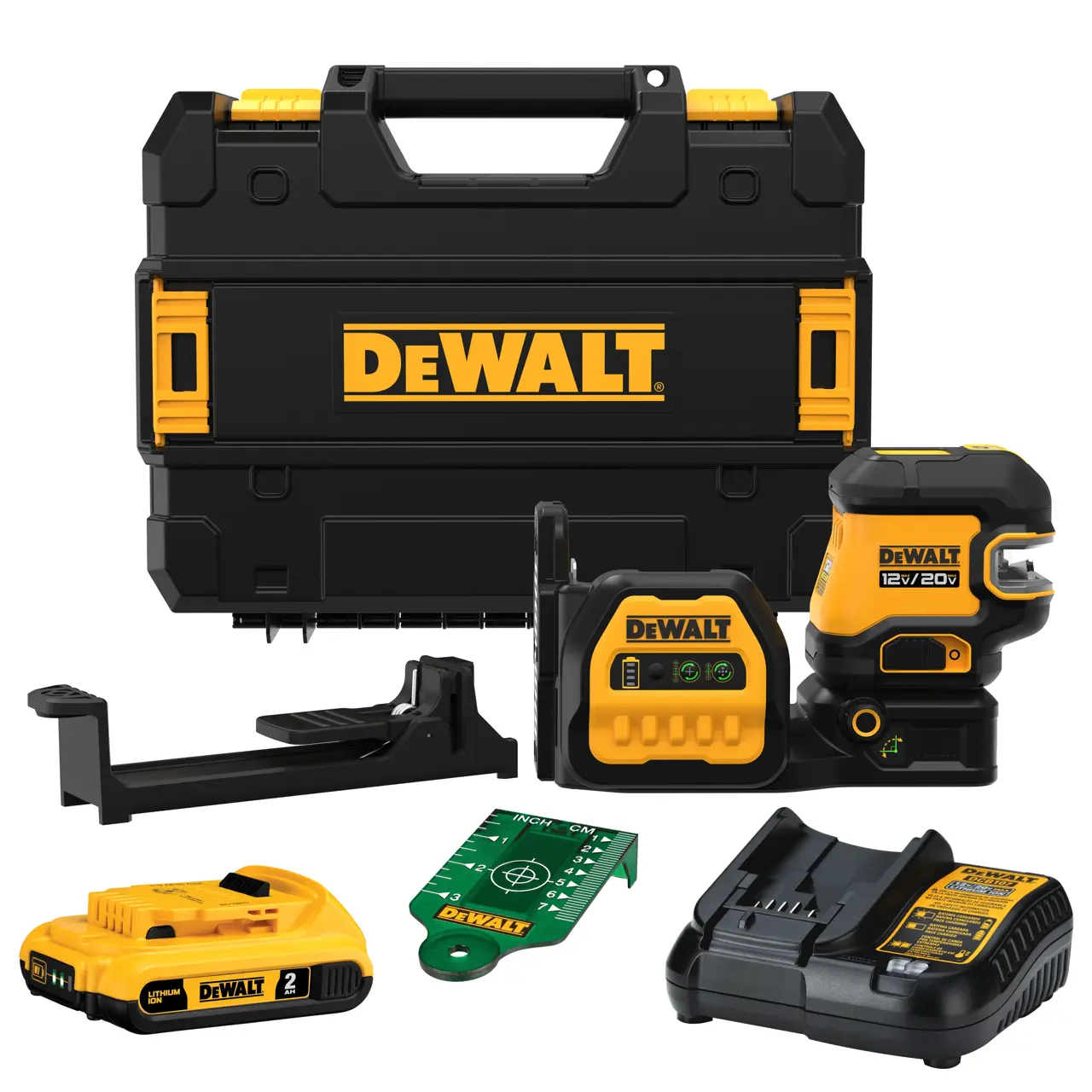

What's in the box
- 1 × 5-Spot green line laser
- 1 × 20V MAX* 2Ah Battery
- 1 × Charger
- 1 × Drop ceiling bracket
- 1 × Target card
- 1 × TSTAK® Case
Kit vs buying the parts
Kit: $670.65 at Tool Nut. 2 of 3 parts priced; can't compare yet. Missing: 5-Spot green line laser.
| 1 × 5-Spot green line laser | no price yet |
|---|---|
| 1 × 20V MAX* 2Ah Battery | $84.86 at Home Depot |
| 1 × Charger | Compatible 20V charger, e.g. DCB1104: $84.97 at Tool Nut. The kit ships with a charger. |
| Bag / case | not sold separately, left out of the sum |
Cheapest authorized in-stock price per part, single packs, from the same dealers as the price list above.
Full specifications
| Product Type | Line Laser Level |
|---|---|
| Voltage | 20V |
| Cordless or Corded | Cordless |
| Power Source | Battery |
| Tool Only | No |
| Total Number of Batteries | 1 |
| Charger Included | Yes |
| Color | Black/Yellow |
| Measurement Accuracy | ±1/8-in |
| Maximum Distance | 100.0-ft |
| Laser Color | Green Beam |
| Mounting Method | Wall or Tripod |
| Self-Leveling | Yes |
| Magnetic | Yes |
| Assembled Product Length | 17.0-in |
| Assembled Product Width | 12.9-in |
| Assembled Product Height | 6.9-in |
| Assembled Product Weight | 9.6-lbs |
| Individual or Set | Set |
Specifications as published by DEWALT.
