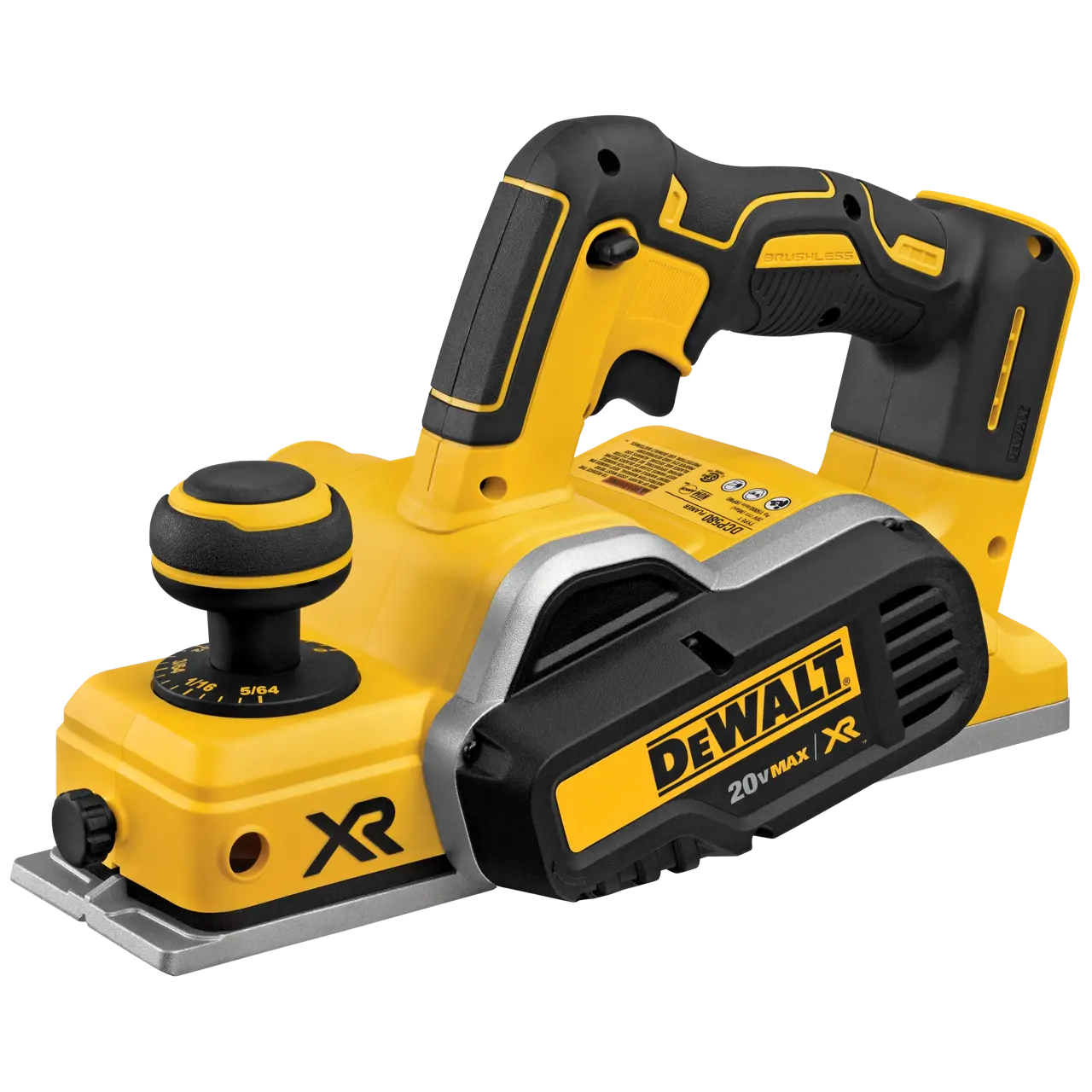

DCP580B
20V MAX XR Brushless Cordless Planer (Tool Only)
The DCP580B features a brushless motor for maximum efficiency that helps to maintain speed under load. The brushless planer features a 3-1/4-in width capacity and ability to adjust depth at 1/256-in adjustments with a rebate capacity of 5/64-in the planer weighs 6.8 lbs and operates on the DEWALT 20V MAX battery system. Lightweight and cordless, the planer can be easily transported around the jobsite without the hassle of a cord. Battery, charger and dust bag sold separately.
Where it's sold
- US Listed on DEWALT United States ยท from $220.15
- UK Not currently sold
- EU Not currently sold
Prices
Checked 28 Oct 2026
- Toolnut $220.15
- powertoolstore $259.00
- Walmart $163.99 Marketplace seller: The TOOL GUY
Some retailer links are affiliate links: we may earn a commission on qualifying purchases at no extra cost to you. Details
Full specifications
| Product Type | Planer |
|---|---|
| Voltage | 20V |
| Power Source | Battery |
| Cordless or Corded | Cordless |
| Tool Only | Yes |
| Amperage | 0 |
| Blade Type | Reversible Carbide |
| Blade Width | 3.25-in |
| Maximum Speed | 15000-rpm |
| Variable Speed | No |
| Maximum Cut Height | 0.08-in |
| Number of Speeds | 1 |
| Portable | Yes |
| Assembled Product Height | 8.9-in |
| Assembled Product Length | 13.7-in |
| Assembled Product Width | 7.85-in |
| Assembled Product Weight | 7.8-lbs |
| Piece Count | 1 |
Specifications as published by DEWALT.
